ROTTE Parcel & Logistics Solutions
Automated parcel sorting hub

Warehouse automation

From parcel infeed to final sort.

Sorting and material-flow systems for e-commerce, distribution and express centres — from plug-and-play fast sorters to 100,000 PPH cross-belt lines, integrated with your existing WMS.

Our competencies

  1. 01R&D capabilities
  2. 02Product development
  3. 03Plan customisation
  4. 04Equipment production
  5. 05Installation & commissioning
  6. 06After-sales service

Sorting systems

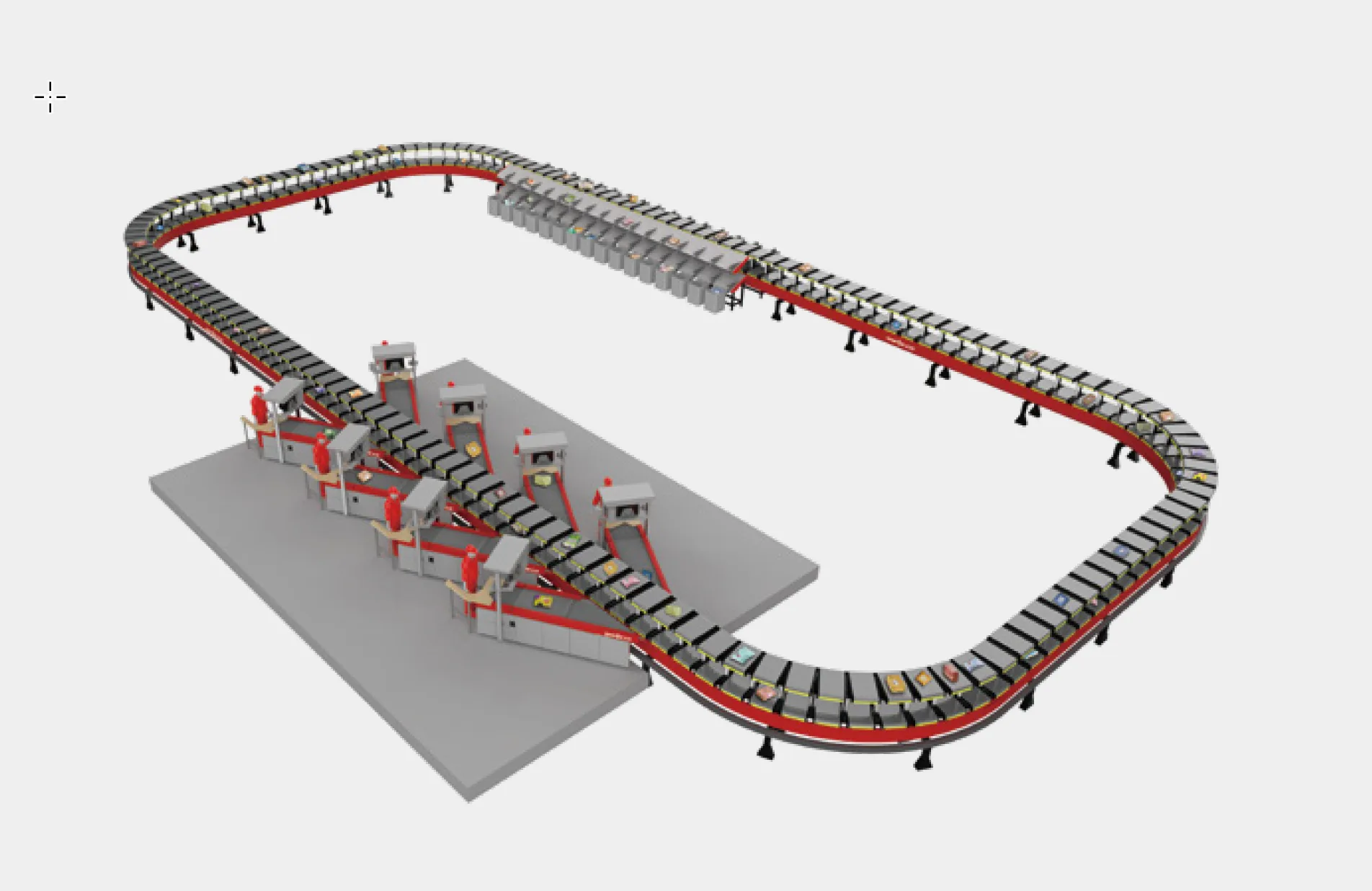

Loop cross-belt sorter

Loop cross-belt sorter

Custom-designed for your warehouse, in single, double or multi-layer configurations.

Sorting capacity12,000 – 100,000 PPH
  • High-speed, high-quality scanning
  • Fully or semi-automated infeed
  • Weight measurement
  • Sorting and bagging processes
  • Equipment monitoring & management system

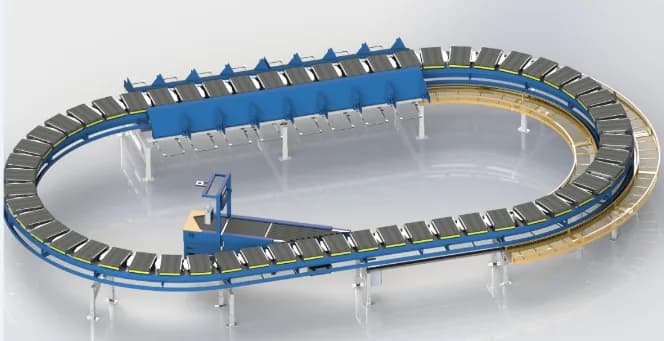

Circular cross-belt sorter

Circular cross-belt sorter

The fastest and most widely used automatic sorting system, built to move large volumes continuously over long periods.

Sorting capacity18,000 – 100,000 PPH
  • Single- or double-layer
  • Twin cell carriers
  • Carts with weighing function
  • Optional intelligent rectification to align parcels and minimise misclassification

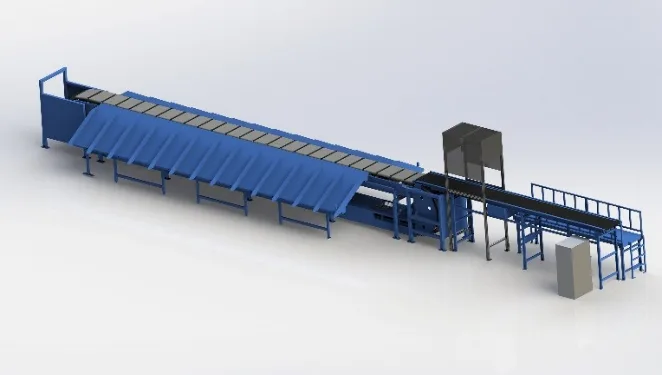

Linear sorters

Linear sorters

Comprehensive, cost-effective sorting with a relatively small investment.

Sorting capacity4,000 – 15,000 PPH
  • Single / double-layer linear cross-belt
  • Linear narrow-belt sorter
  • Tilt-tray sorting system
  • Goods from 100 × 100 × 10 mm, 100 g – 60 kg
  • Up to 6-side barcode scanning (Cognex, Keyence, Datalogic, Hikvision)
  • Sorting accuracy ≥ 99.99%

Intelligent sorting modules

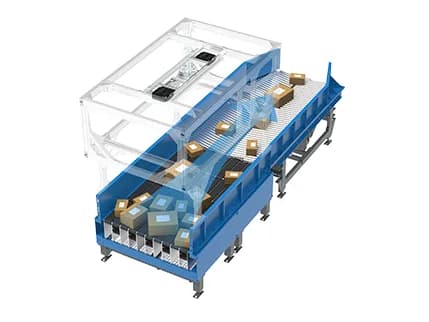

2D / 3D bulk-flow singulator

2D / 3D bulk-flow singulator

Deep-learning vision with high-performance industrial cameras positions parcels for smooth infeed.

  • Up to 10,000 PPH
  • Identification accuracy ≥ 99.99%
  • Multi-region parcel positioning and area calculation
Dynamic DWS system

Dynamic DWS system

Barcode scanning, weighing and volume measurement at the same place and time.

  • High-resolution barcode cameras
  • Stereo camera
  • Dynamic weighing modules
  • Identification accuracy ≥ 99.99%

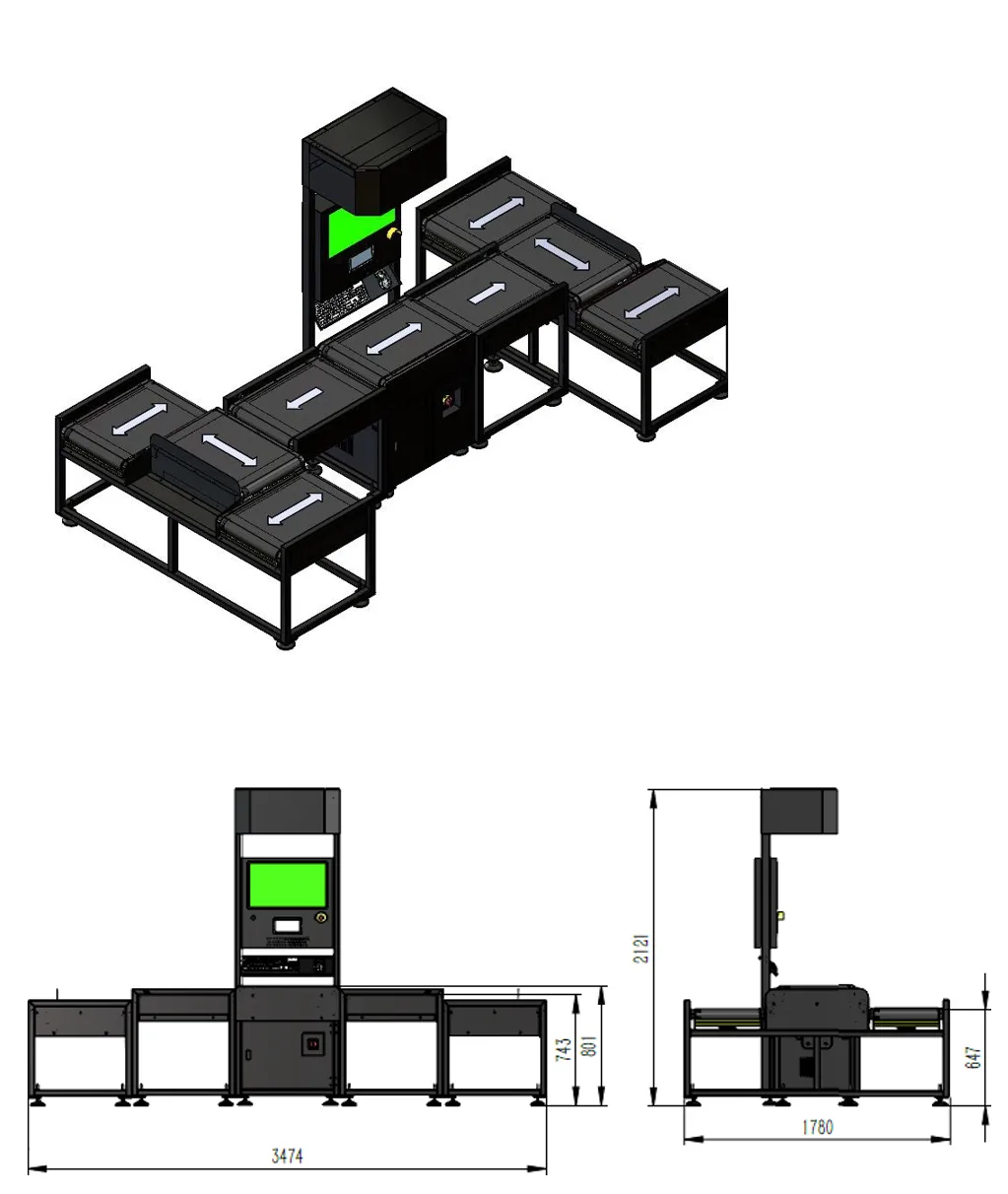

Fast sorter

Fast sorter

Easy to use, plug-and-play — scanning, weighing, dimensioning, sorting and data transmission in one compact unit.

  • Up to 2,000 PPH
  • Parcels 20 g – 60 kg
  • 100 × 100 × 20 to 500 × 400 × 400 mm
  • CE and OIML-certified load cell
  • Very low investment cost

Intelligent storage & handling

Customised automated storage that reduces labour costs and increases inventory capacity.

Tote four-way shuttle
50 kg rated load
Tote stacker crane
100 kg rated load
Pallet stacker crane
8,000 kg rated load
Pallet four-way shuttle
1,500 kg rated load
RGV carrier
2,000 kg rated load
Forklift
Up to 20 m lift, 2,000 kg
Intelligent 3D sorter
Custom configuration

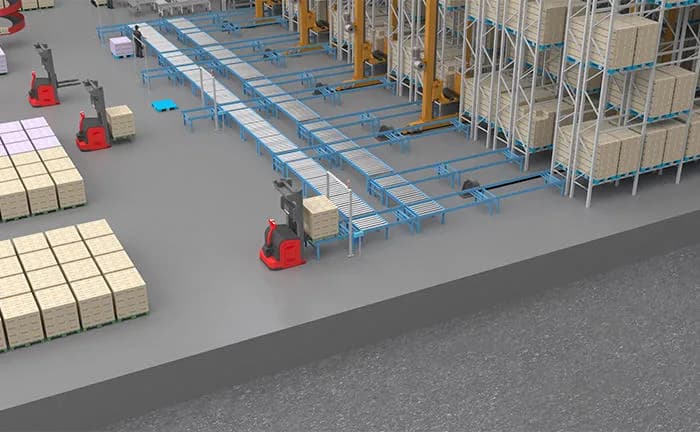

Automated pallet storage system

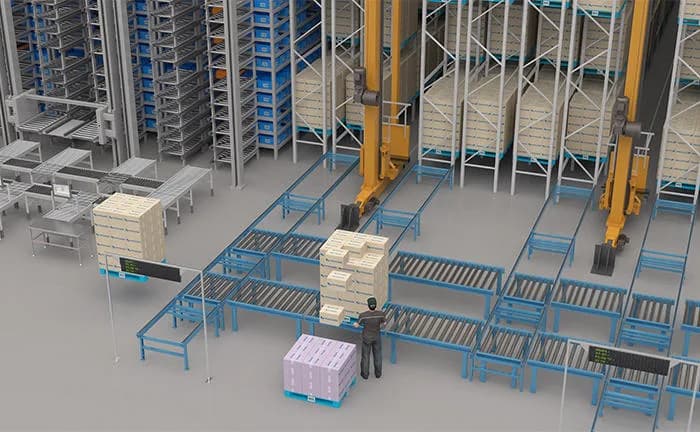

Tote shuttle storage system

Tell us what needs to move.

A parcel locker network, a new sorting hub, equipment replacement or SLA coverage — send us the brief and we will structure the next step.
